ZAIO AIO (all-in-one) solar street lights offer flexible and high-performance lighting solutions for professional outdoor applications. High Lumen 8500lm~238000lm, Suitable for different height.  The rotatable LED modules ensure maximum light efficiency, while the MPPT solar controller and LiFePO₄ battery guarantee durability and intelligent energy management. Perfect for public roads, urban areas, and infrastructure projects.

ASK FOR A QUOTE

ZAIO All-in-One Solar Street Light – Adjustable Angle | 8500-238000lm | MPPT Controller | LiFePO₄ Battery

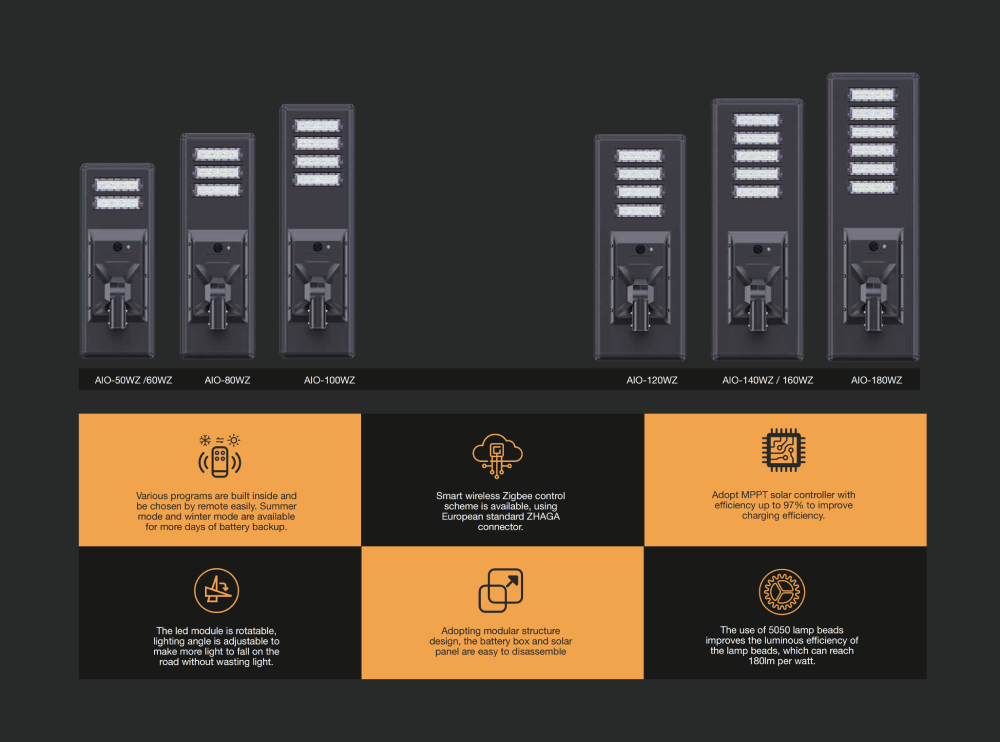

Features

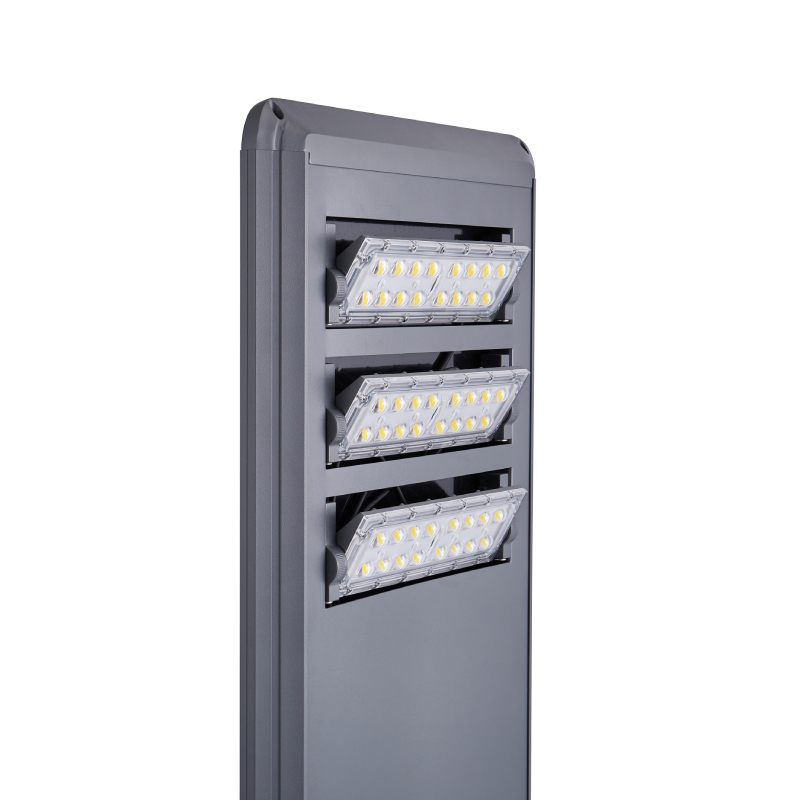

  • Rotatable LED Modules:
    Each LED module can be manually adjusted to +30° ~ -10° without tools, ensuring that light is directed precisely on the road surface while allowing the solar panel to face the sun optimally. The Light installation angle also can be adjusted.,
  • Wide Power Range:
    50W–180W
Suitable for pole heights from 5m to 14m, covering a broad range of lighting applications from rural roads to urban highways.
  • High Efficiency 5050 LED Chips
    Up to 180lm/W luminous efficacy, ensuring maximum brightness and energy efficiency.
  • Smart MPPT Controller (97% efficiency)
    Optimizes solar charging, improves battery lifespan, and allows for advanced remote programming and sensor control.
  • Integrated LiFePO₄ Battery
    High safety and long lifecycle (up to 6000 cycles @ 80% DOD), ensuring durability and performance even under harsh environments.
  • IP65 Waterproof & IK08 Impact Resistant

    Ideal for all weather conditions — rain, snow, wind, or dust.
  • Smart Operation Modes
    Multiple lighting programs (summer/winter modes, sensor-triggered dimming, etc.) settable via remote control, adapting to different regions’ solar radiation levels
  • Easy Installation & Maintenance
    Modular design with quick-release brackets and battery box makes future maintenance simple and efficient.



Specifications

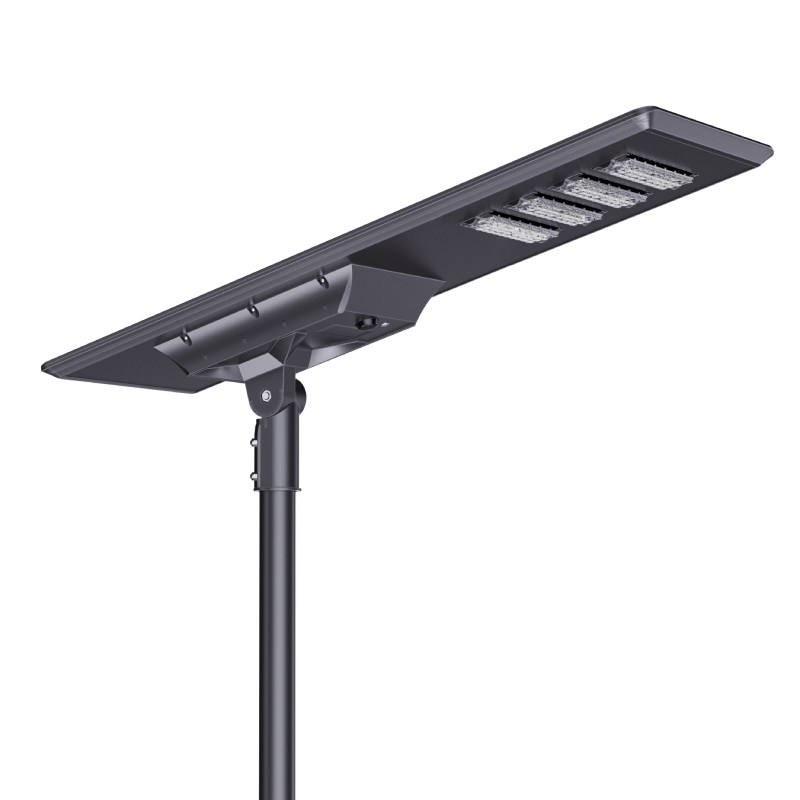

ModelAIO-100WZ
Wattage100W
Lumens17,000lm
Lamp Size1590*420*350mm
Net Weight23.5kgs
Solar Panel18V 103W
LiFePO4 battery12.8V 768WH
LED ChipsSMD5050 64pcs
Colour Temperature2200K~6500K
Installation height6 ~ 12m

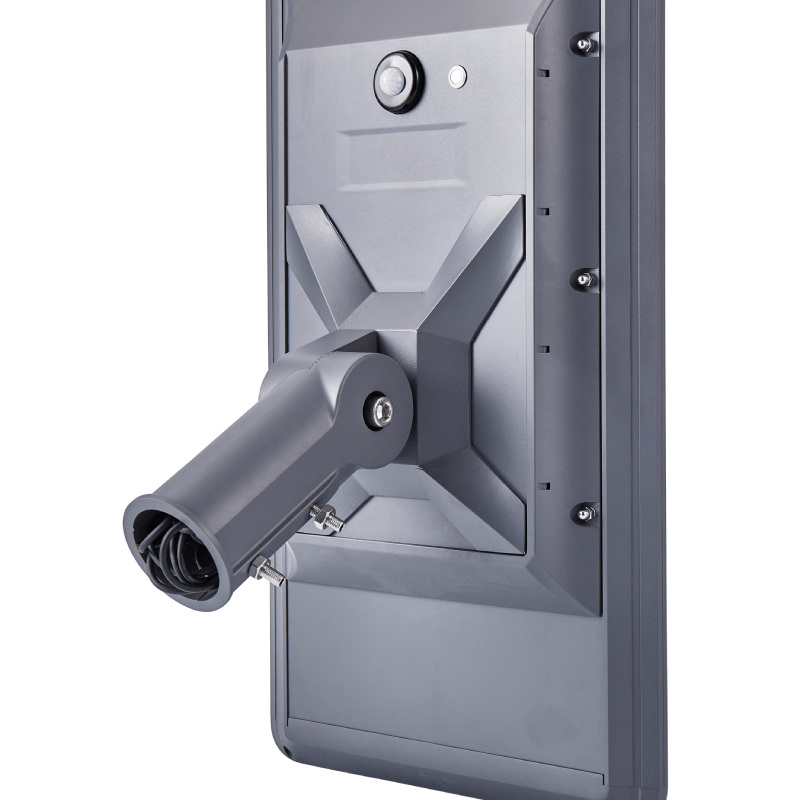

PIR Sensor Distance12m
Discharging temperature-10℃～+60℃
Beam Angle120°
Finish ColourGrey
Warranty5-Year Warranty
ControlLight Sensor, Motion Sensor, Romote control
Light Mode:First 4hours 100% brightness, then turn to 30% dim brightness until dawn

First 4hours 100% brightness,  then works at 30% power and at 100% when the sensor is triggered

The luminaire works at 30% power and at 100% when the sensor is triggered for the whole night

Need a complete datasheet, quotation, or tailored lighting plan? Contact our team today — we’re ready to help.
